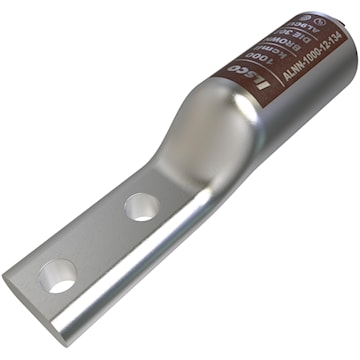

ILSCO ALNN-1000-12-134 AL COMP NARROW 1000 KCMIL 9/16-1-3/4 T U
ilsalnn100012134
ILSCO ALNN-1000-12-134 AL COMP NARROW 1000 KCMIL 9/16-1-3/4 T U
Price
$52.05
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:ALNN-1000-12-134
Description
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 1000 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index P302,
Specifications
| Brand Name | ILSCO | Sub Brand | Surecrimp |
| Type | ALNN:LONG NARROW TANG | Number of Holes | 2 |
| Barrel Length | 2.996 in | Material | Aluminum |
| Voltage Rating | 35,000 V | Barrel Type | Long |
| Strip Length | 77.685 mm | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Aluminum Compression Lug |
| UPC | 783669687941 |
