ilsclws70012
ILSCO CLWS-700-12 CU CMP W/SYT 700KCMIL 9/16 T UL CSA LONG
ilsclws70012
ILSCO CLWS-700-12 CU CMP W/SYT 700KCMIL 9/16 T UL CSA LONG
Price
$84.16
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:CLWS-700-12
Description

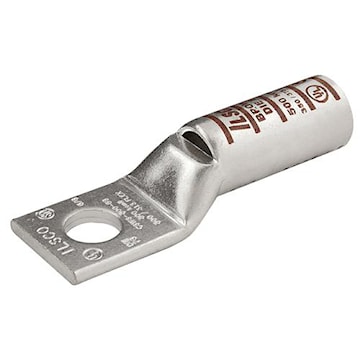

Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 700 kcmil, sight window, Square tang end, flex conductor range 500 G,H,I, K,M 535.3 DLO, rated for 35 kV, die color code Pink, primary color Silver, die index I-99,
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Type | CLWS:1 HOLE LONG W/SIGHT | Number of Holes | 1 |
| Barrel Length | 2.687 in | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long |
| Strip Length | 69.824 mm | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Terminating Connector |
| UPC | 783669648232 |
