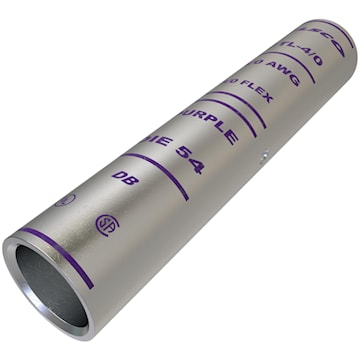

ILSCO CTL-4/0 SureCrimp® Long Barrel Compression Sleeve Tin Plated Copper CTL
ilsctl4/0
ILSCO CTL-4/0 SureCrimp® Long Barrel Compression Sleeve Tin Plated Copper CTL
Inventory
Unavailable for order
Manufacturer:ILSCO
Manufacturer #:CTL-4/0
Description
Long barrelled copper compression sleeve, chamfered entry, color coded. Manufactured from high strength seamless copper tubing. Offers maximum conductivity and excellent crimping characteristics. Provides low contact resistance. For easy conductor insertion. Identifies the proper compression die. For grounding and bonding applications.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Long Barrel Compression Sleeve | Type | CTL |
| Conductor Size | 4/0-1 AWG Expanded | Material | Copper |
| Connector Type | Parallel | Voltage Rating | 600 V |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Silver | Dimensions | 0.546 in dia |
| Standards | NEBS Rating: Level 3, CSA File Number: LR-29601, UL 486A-B UL 467, UL File Number: E6207 | Application | For Splicer/Reducer |
| UPC | 783669128253 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 |
