ilsctl8
ILSCO CTL-8 CU CMP 8 T UL CSA
ilsctl8
ILSCO CTL-8 CU CMP 8 T UL CSA
Price
$11.62
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:CTL-8
Description

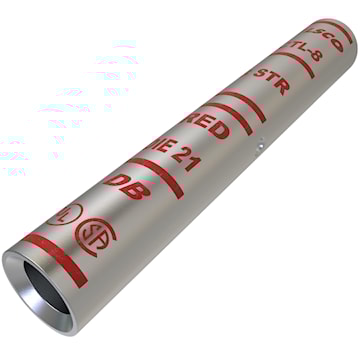

Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 8 Sol, 8 Str, 1 conductors, no sight window, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Type | UL Model | Material | Copper |
| Voltage Rating | 35000 V | Temperature Rating | 90 °C |
| Finish | Tin Plated | Color | Silver |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207 | Application | Grounding and Bonding |
| UPC | 783669003352 |
