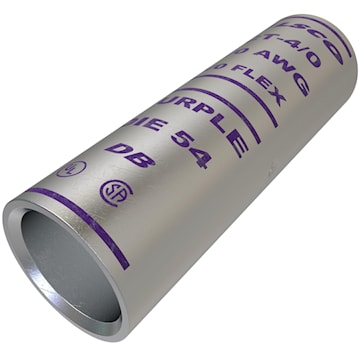

ILSCO CT-4/0 SureCrimp® Short Barrel Compression Sleeve 2-1/8 in L Tin Plated Copper UL Model
ilsct4/0
ILSCO CT-4/0 SureCrimp® Short Barrel Compression Sleeve 2-1/8 in L Tin Plated Copper UL Model
Price
$28.98
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:CT-4/0
Description
Short barrelled copper compression sleeve, chamfered entry, color coded. Manufactured from high strength seamless copper tubing. Offers maximum conductivity and excellent crimping characteristics. Provides low contact resistance. For easy conductor insertion. Identifies the proper compression die. For grounding and bonding applications.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Short Barrel Compression Sleeve | Type | UL Model |
| Conductor Size | 4/0-1 AWG Expanded | Die Code | I-54 |
| Length | 2-1/8 in | Material | Copper |
| Series | CT | Connector Type | Parallel |
| Voltage Rating | 600 V | Temperature Rating | 90 °C |
| Specifications | 1-1/8 in Strip Length | Finish | Tin Plated |
| Color | Purple | Dimensions | 0.546 in ID x 0.687 in OD |
| Standards | UL 486A-B, UL File Number E6207, CSA File Number LR29601, NEBS Rated Level 3 | Application | Grounding and Bonding |
| UPC | 783669119886 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 |
