ilspct62/0

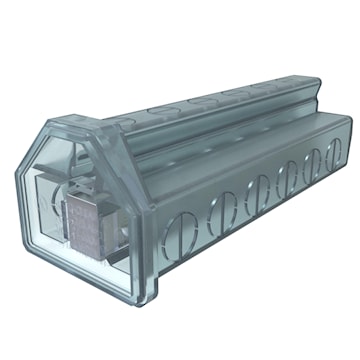

ILSCO PCT-6-2/0 ClearTap® Multi-Tap Connector PCT, Insulated 6 Ports 2/0-14 AWG AL/CU
Final sale
ilspct62/0
ILSCO PCT-6-2/0 ClearTap® Multi-Tap Connector PCT, Insulated 6 Ports 2/0-14 AWG AL/CU
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:PCT-6-2/0
Description
Dual rated Insulated multi-tap six port connector for street lighting. Transparent flexible insulating cover. Captive pressure screws. Self-closing openings. Access from both sides of connector. Provides greater versatility. Reduces inventory. Ensures reliability. For copper or aluminum conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearTap® |
| Item Name | Multi-Tap Connector | Type | PCT, Insulated |
| Voltage Rating | 600 V | Number of Ports | 6 |
| Number of Conductors | 6 | Conductor Size | 2/0-14 AWG |
| Material | AL/CU | Color/Finish | Clear |
| Conductor Type | Solid,Stranded | Connection Type | Mechanical |
| Stud Size | 3/16 in | Dimensions | 5.98 in L x 2.3 in W x 1.97 in H |
| Temperature Rating | -45 to 90 °C | Standards | UL 486A-B, UL File Number E6207, CSA File Number LR29601 |
| Application | Connecting Tap | UPC | 783669700442 |
