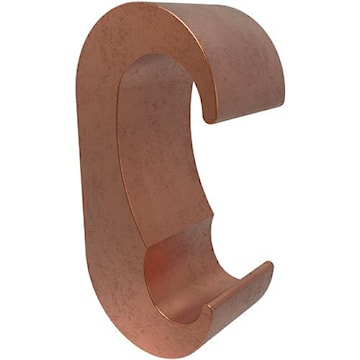

ILSCO ELT-6 ILSCO Compression E-Crimp Connector ELT:COPPER E CRIMP 250 kcmil - 3/0 AWG
ilselt6
ILSCO ELT-6 ILSCO Compression E-Crimp Connector ELT:COPPER E CRIMP 250 kcmil - 3/0 AWG
Price
$44.26
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:ELT-6
Description
Copper E crimp grounding connector manufactured from copper alloy. Clearly marked with wire size and die index. Provides maximum conductivity and eliminates the possibility of corrosion. Suitable for direct burial. Reduces inventory, ensures reliability.
Specifications
| Brand Name | Ilsco | Sub Brand | ILSCO |
| Item Name | Compression E-Crimp Connector | Type | ELT:COPPER E CRIMP |
| Voltage Rating | NA kV | Run Conductor Size | 500-300 kcmil |
| Tap Conductor Size | 250 kcmil - 3/0 AWG | Die Index Number | 1011 |
| Material | Copper Alloy | Length | 0.875 in |
| Width | 0.875 in | Height | 2.672 in |
| Temperature Rating | NA °C | For Use With | Ground Rod |
| Standards | UL 467 Listed and CSA Certified, UL File E34440 | Application | For Ground Grid Applications |
| UPC | 783669257403 |
Packages
| 1 - rarr_unit_1 | 6 - rarr_unit_2 |
