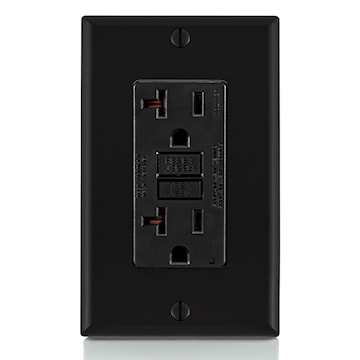

LEVITON GFTR2-E Smart-Lock Pro GFCI Duplex Receptacle with LED Indicator 20 A, 5-20R Black
Description
SmartlockPro® Self-test GFCI tamper resistant receptacle provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted. NEMA 5-20R, back and side wired. Duplex with LED indicator (with self-grounding clip). Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line-load reversed). Trip threshold meets or exceeds UL requirements for tripping time. Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault. Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal. Silver alloy contacts. Impact-resistant thermoplastic cover and body.
Specifications
Brand Name | Leviton | Sub Brand | Smart-Lock Pro |
Item Name | GFCI Duplex Receptacle with LED Indicator | Type | Tamper-Resistant, Self-Test, Slim, Self Grounding, Monochromatic |
Grade | Residential/Commercial Specification | Size | Standard |
Voltage Rating | 125 VAC | Amperage Rating | 20 A |
Number of Poles | 2 | Number of Wires | 3 |
Connection Type | Back and Side Wire | Short Circuit Rating | 10 kA |
NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
Material | Polycarbonate | Color | Black |
Maximum Load Capacity | 1 hp | Trip Level | + 5 mA or -1 mA Class A |
Terminal Connection | Screw | Dielectric Strength | 1250 VAC |
Grounding | Self-Grounding | Contact Material | Brass |
Dimensions | 4.21 in L x 1.69 in W x 1.4 in D | Mounting Type | Flush |
Temperature Rating | -35 °C to 66 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
For Use With | Decora Devices and Wallplates | Includes | Screws and Self Grounding Clip |
Standards | UL 498, UL 943 UL File Number E48380, ANSI C-73, CSA-C22.2 No. 144.1-06, CSA File Number LR57811, CSA C22.2 No. 42, Federal Specification WC-596, Military Specification A-A-55459-SB, NOM Certified | Application | For Kitchens, Bathrooms, Garages, Basements, Educational Facilities, Airports, Restaurants, Lodging and Retail Malls, Commercial Offices, Public Areas |
UPC | 078477497326 |
