levt5825e

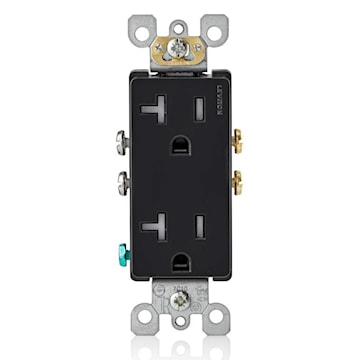

LEVITON T5825-E Decora® Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Black
levt5825e
LEVITON T5825-E Decora® Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Black
Price
$5.94
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:T5825-E
Description
Levitons tamper-resistant Decora duplex receptacle are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton's complete line of Decora devices.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Tamper-Resistant |
| Size | 4.2 H x 1.351 W x 1.184 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Quickwire Push-In and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 AWG |
| Material | Thermoplastic | Color | Black |
| Finish | Matte | Terminal Connection | Screw |
| Dimensions | 34.32 mm W x 30.07 mm D x 106.68 mm H | Mounting Type | Wallplate, Flush, Screw |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL Listed, CSA File Number 152105, NOM Certified, NEMA Rated | Application | Commercial use |
| UPC | 078477450512 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 50 - rarr_unit_3 | 3600 - rarr_unit_4 |
