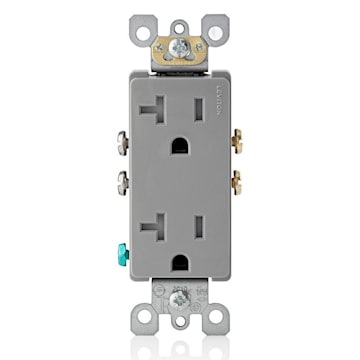

LEVITON T5825-GY Decora® Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Gray
levt5825gy
LEVITON T5825-GY Decora® Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Gray
Price
$5.94
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:T5825-GY
Description
Ultrasonically welded, 20A Tamper-Resistant, Decora duplex receptacle. Residential grade, NEMA 5-20R, side wired only, Grey.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Tamper-Resistant |
| Size | 4.2 H x 1.351 W x 1.184 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Quickwire Push-In and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 AWG |
| Material | Thermoplastic | Color | Gray |
| Frequency Rating | 50/60 Hz | Terminal Connection | Screw |
| Dimensions | 38.7 mm W x 29 mm D x 103.2 mm H | Mounting Type | Wallplate, Flush, Screw |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL Listed, CSA File Number 152105, NOM Certified, NEMA Rated | Application | Commercial use |
| UPC | 078477450529 |
