levt5325gy

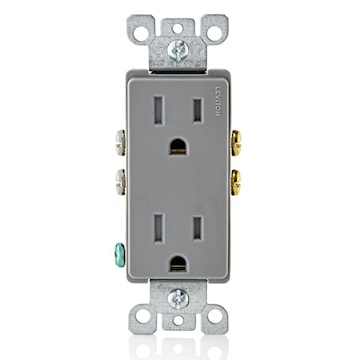

LEVITON T5325-GY Decora Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Gray
levt5325gy
LEVITON T5325-GY Decora Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Gray
Price
$2.18
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:T5325-GY
Description
Decora® duplex receptacles are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Self Grounding, Tamper-Resistant , 2-Unit |
| Grade | Commercial | Size | 4.2 H x 1.33 W x 0.76 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Quickwire Push-in and Side Wire |
| NEMA Rating | 5-15R | Conductor Size | 14 AWG |
| Material | Thermoplastic | Color | Gray |
| Finish | Untreated | Frequency Rating | 60 Hz |
| Terminal Connection | Blade | Grounding | Grounding |
| Dimensions | 33.3 mm W x 25.4 mm D x 106.2 mm H | Mounting Type | Screw, Wallplate, Built-in Installation |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | NEMA WD-6, ANSI C73, NOM 057 Certified, CSA File Number LR-406, CSA C22.22 No. 111, UL 20, UL Listed 498, UL Listed 943, UL File Number E-13399 | Application | Commercial |
| UPC | 078477438213 |
